Day/night functionality
Smart IR, up to 30m (98ft) IR distance
3D DNR (Digital Noise Reduction)
Compression
Ultra 265, H.265, H.264, MJPEG
ROI (Region of Interest)
- Specification
- Downloads

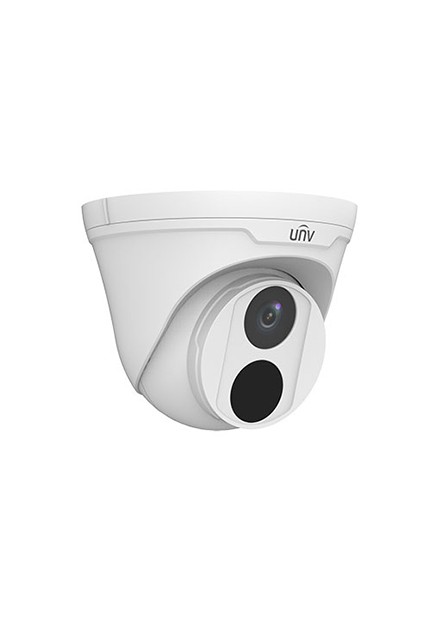

| IPC3612LR3-PF28-D | IPC3612LR3-PF40-D | |||||||
| Camera | ||||||||
| Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 46.7 | 18.7 | 9.3 | 4.7 | ||||
| 4.0 | 66.7 | 26.7 | 13.3 | 6.7 | ||||
| Angle of view (H) | 112.7° | 86.5° | ||||||
| Angle of View (V) | 60.1° | 44.1° | ||||||
| Angle of View (O) | 146.5° | 106.4° | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |||||
| Min. Illumination | Colour: 0.02Lux (F2.0, AGC ON) 0Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| S/N | >52dB | |||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| WDR | Supported | |||||||
| Noise Reduction | 2D/3D | |||||||
| Video | ||||||||
| Max. Resolution | 1920*1080 | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile | |||||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: CIF (352*288), Max 30fps | |||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 2 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal/Vertical/Horizontal/180° | |||||||
| Dewarping | Supported | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile T),API | |||||||
| Client | EZStation EZView EZLive | |||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||
| Interface | ||||||||
| Network | 10/100M Base-TX Ethernet | |||||||
| Certifications | ||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 4.5W | ||||||||
| Dimensions (Ø x H) | Φ118 x 96mm (Φ4.6” x 3.8”) | |||||||
| Net Weight | 0.2kg (0.44lb) | |||||||
| Material | Metal + Plastic | |||||||
| Working Environment | -20°C ~ 50°C (-4°F ~ 122°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Strorage Environment | -20°C ~ 50°C (-4°F ~ 122°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 2KV | |||||||
| Ingress Protection | IP67 | |||||||
