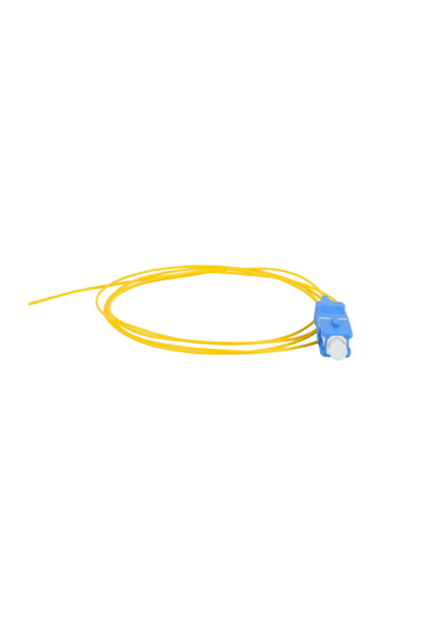

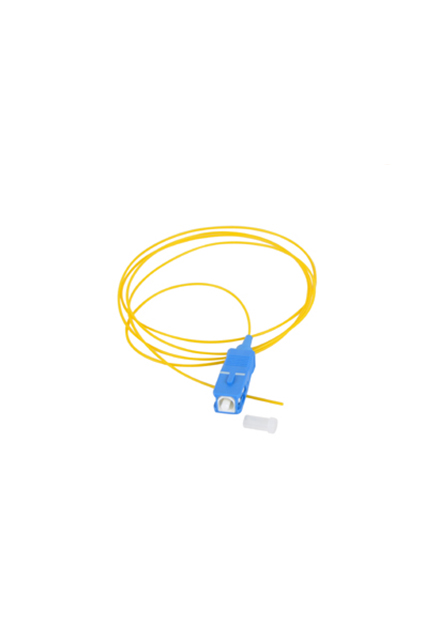

- Connectors : SC/UPC to SC/UPC
- Length : 1.5 mtr
- Channels : Simplex
- Precision : Singlemode
- Color : Blue
- Specification
- Downloads
| CONNECTOR TYPE | SC/LC/ST/FC/MTRJ |
|---|---|
| OPTICAL FIBER | Single- Mode |
| CABLE TYPE |
|
| LENGTH | 1.5M Other Length on request |
| WORKING TEMPRATURE | -40℃- +85 ℃ |
| STORAGE TEMPRATURE | -40℃- +85 ℃ |
| OPTICAL SPECIFICATION | |
| Insertion Loss | Typical:≤0.2dBm Max. 0.3dB (MTRJ: Max. 0.5dB) |
| Return Loss | PC:≤45dB, UPC≤50 dB,APC≤60dB |
| MECHANICAL SPECIFICATION | |
| Connector Ferrule | Ceramic |
| Repeatability | ≤ 0.2dB 1000 times mating cycles |
