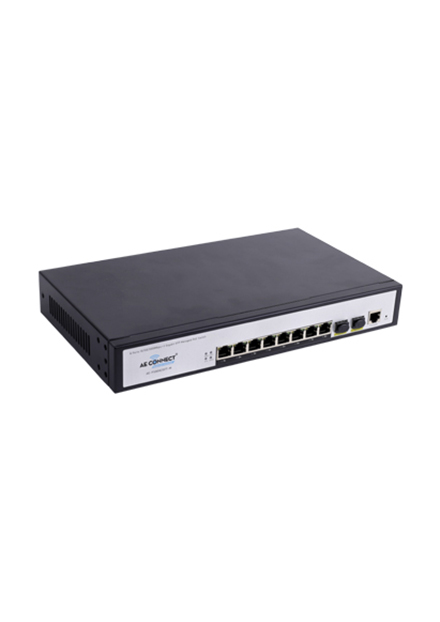

AEAE-PS8082SFT-M

AEAE-PS8082SFT-M AEAE-PS8082SFT-M

  • 8x 10/100 /1000 PoE+ Port
  • 2x 10/100/1000 SFP (Fiber) Up link Port
  • 1 console port
  • Fully L2 Manage Switch
  • Total Power Budget 120W
  • AF/AT PoE Standard Support

Send Inquiry

MODELAE-PS8082SFT-M
HARDWARE SPECIFICATIONS
CONNECTOR
  • 8 10/100/1000BASE-T RJ45 auto MDI/MDIX ports
  • 2 1000 Base-X SFP Slots 1 Console port
POE PORT8 10/100/1000Mbps POE PSE port
LED DISPLAY
  • Power Indicator: PWR(green).
  • Network Indicator: Link(yellow)
  • PoE Working Indicator: PoE(green)
THERMAL FANFanless Design
LED INDICATORS
  • Power Indicator: PWR(green).
  • Network Indicator: Link(yellow)
  • PoE Working Indicator: PoE(green)
SWITCH ARCHITECTUREStore and Forward
TRANSMISSION MODELIEEE802.3X full-duplex and Backpressure half-duplex
SWITCH PERFORMANCE
  • Backplane bandwidth | 32Gbps
  • Packet forwarding rate | 14.88Mpps
  • MAC address | 8k
POWER REQUIREMENTAC100-240V 50/60Hz ESD Protection 6KV ESD
POWER OVER ETHERNET (POE) SPECIFICATIONS
NETWORK STANDARD
  • IEEE802.3i 10 BASE-T
  • IEEE802.3u 100 BASE-TX
  • IEEE802.3ab 1000BASE-T
  • IEEE802.3x Flow Control
  • IEEE802.3af Power over Ethernet
  • IEEE802.3at Power over Ethernet
  • IEEE802.3az EEE
POE STANDARD
  • IEEE 802.3af Power over Ethernet/PSE
  • IEEE 802.3at Power over Ethernet Plus/PSE
POE SUPPLY TYPE1/2(+), 3/6(-) End-span
POE POWER OUTPUT
  • Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
  • Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)
POE POWER BUDGET120W
LAYER 2 FUNCTIONS
PORT MIRRORINGTX / RX / both Many-to-1 monitor Vlan
VLAN
  • 802.1Q tagged-based
  • Up to 256 VLAN groups, out of 4094 VLAN Ids
  • 802.1ad Q-in-Q tunneling
  • Voice VLAN;Protocol VLAN;Private VLAN (Protected port),GVRP
LINK AGGREGATION
  • IEEE 802.3ad LACP and static trunk
  • Supports 8 groups of 8-port trunk
SPANNING TREE PROTOCOL
  • STP, IEEE 802.1D Spanning Tree Protocol
  • RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
  • MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
IGMP SNOOPING
  • IGMP (v2/v3) snooping
  • IGMP querier
  • Up to 256 multicast groups
MLD SNOOPINGMLD (v1/v2) snooping, up to 256 multicast groups
ACCESS CONTROL LISTIPv4/IPv6 IP-based ACL / MAC-based ACL
POE MANAGEMENT
  • Open or close port
  • Standard POE scheduling management Power and current display
  • Automatic restarting function of equipment dead machine Timing
  • Support IP bindings restarting
QOS
  • 8 mapping ID to 8 level priority queues
  • - Port number
  • - 802.1p priority
  • - 802.1Q VLAN tag
  • - DSCP field in IP packet
  • Traffic classication based, strict priority and WRR
SECURITY
  • IEEE 802.1X port-based authentication
  • Built-in RADIUS client to co-operate with RADIUS server RADIUS / TACACS+ user access authentication
  • IP-MAC port binding
  • MAC filtering
  • Static MAC address
  • DHCP Snooping and DHCP Option82
  • STP BPDU guard, BPDU filtering and BPDU forwarding
  • DoS attack prevention
  • ARP inspection
  • IP source guard
MANAGEMENT FUNCTION
BASIC MANAGEMENT INTERFACES
  • Web browser / Telnet / SNMP v1, v2c, V3
  • Firmware upgrade by HTTP / TFTP protocol through Ethernet network
  • Remote / Local Syslog,System log,LLDP protocol, SNTP
SECURE MANAGEMENT INTERFACESSSH, SSL, SNMP
SNMP MIBS
  • RFC 1213 MIB-II
  • RFC 1215 Generic Traps
  • RFC 1493 Bridge MIB
  • RFC 2674 Bridge MIB Extensions
  • RFC 2737 Entity MIB (Version 2)
  • RFC 2819 RMON (1, 2, 3, 9)
  • RFC 2863 Interface Group MIB
  • RFC 3635 Ethernet-like MIB
ENVIRONMENT
SAFETYFCC Part15 Class A,CE.RoHs
ENVIRONMENT SPECICATION
  • Operating temperature: -10℃~45℃，operating humidity: 10％~90％
  • Storage temperature: -20℃~70℃，storage humidity: 5％~95％
